HP type rail bond method

We are pleased to introduce the method of HP type rail bond.
It is saying simply that this method is just brazing terminal to rail as shown below.

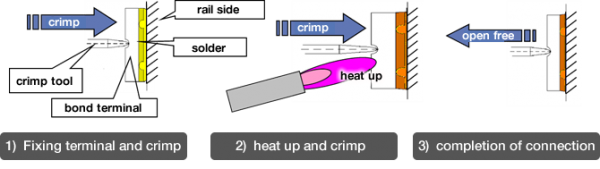

Fig 1. Principle of HP bond brazing method

Fig 1. Principle of HP bond brazing method

1)  Positioning of terminal

  • After deciding position of fix, it is to be marked the width on the rail with own positioning piece.

Positioning of terminal

2)  Grinding rail

  • It is to be grinded a little bit larger area than that of marked in advance.
  • It confirms smoothness at the grinding area by own gauge.

grinding

grinding

②レール研磨(平滑度確認)

confirms smoothness

3)  Fix terminal

  • It is to apply the flux and fix the terminal with own crimp tool.

Applying flux

Applying flux

Fixing with crimp tool

Fixing with crimp tool

4)  Heat up

  • It is to heat up the terminal by acetylene burner.
    (heating up standard time is 85 seconds at 110sq terminal and 75 seconds at other ones except 110sq terminal)

heat up the terminal end

a. heat up the terminal end

solder brazing

b. heat up the part of crimp conducting current wire

heat up the terminal end

c. heat up the terminal end

5)  Cooling and washing

  • It is to spray water for cooling and wash out the remaining flux.
  • It confirms that solder must be soaking out around the terminal piece.
    (confirming finish)

spray washing

spray washing

confirming finish

confirming finish

On the way to these processing, most important point is to be 4) heating process.
It is quite necessary to heat up the rail material more than 216 degree C melting point of solder in order to make sure the enough connection strength.
This is the separate point of successful work or unsuccessful work for obtaining good performance of HP type bond.
In details, kindly refer to ” Factors of brazing and remarkable points
